Vacuum reference
A vacuum reference for the Fe2+/Fe3+ half-cell is obtained from a water slab, by referencing its local potential to the O 1s states of the oxygen atoms in its water molecules. In each of the solvated ion cells, the O 1s level of the water molecules is taken as the same reference, so the energies of the solvated cells can be placed on a common vacuum scale [1]. The derivation and the approximations behind it are given in Vacuum reference: theory.
| Mind: Although the absolute reference is taken here for the electrochemical potential, it is also possible to do this for other examples, such as for electron emission or catalytic processes (swap out the redox level for the valence band maximum - VBM). |
Input files

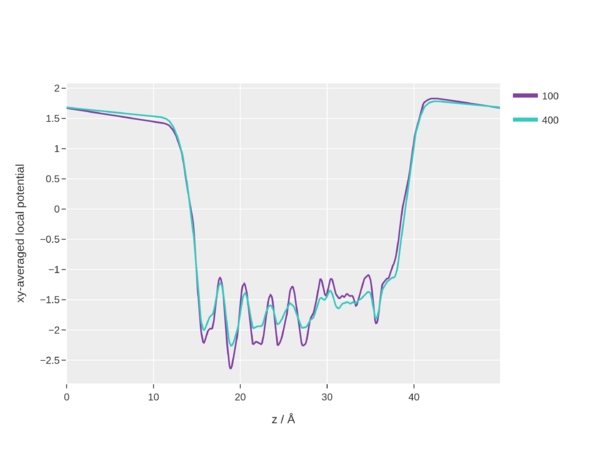

The vacuum alignment is obtained from calculations on three different systems: Fe3+ in 64 H2O (Fe3P_64H2O), Fe2+ in 64 H2O (Fe2P_64H2O), H2O slab with 128 molecules (128H2O_slab), that is, [math]\displaystyle{ [\mathrm{Fe}(\mathrm{H}_2\mathrm{O})_n]^{3+} }[/math], [math]\displaystyle{ [\mathrm{Fe}(\mathrm{H}_2\mathrm{O})_n]^{2+} }[/math], and the water slab.
Fe3P_64H2O), top center: Fe2+ in 64 H2O (Fe2P_64H2O), top right: bulk H2O with 64 molecules (64H2O_bulk), and bottom: H2O slab with 128 molecules (128H2O_slab).The 128H2O_slab calculations are more expensive, since many structures are required to converge the local potential; Ref. [1] uses ~3000. Only the H2O molecules' O1s levels in the center of the slab are used, shaded in gray in Fig. 1, representing the bulk. This only needs to be done once to determine the chemical potential relative to vacuum, and can then be used for any half-cell reaction within 64H2O_bulk and with the same method. In contrast, repeat the Fe2P/Fe3P_64H2O calculations for each reaction. The POSCAR files are described on more detail in the redox potential overview page.
POSCARs
Click to reveal the [math]\displaystyle{ [\mathrm{Fe}(\mathrm{H}_2\mathrm{O})_n]^{3+} }[/math] POSCAR
