Thermodynamic integration: redox potential
Redox potentials of an electrochemical half-cell can be computed by thermodynamic integration, following the procedure of Jinnouchi, Karsai, and Kresse [1]. The Fe3+/Fe2+ half-cell serves as the example throughout (oxidized state/reduced state):
[math]\displaystyle{ \mathrm{Fe^{3+} + e^- \;\rightleftharpoons\; Fe^{2+}} }[/math]
The following two models are used:
- [math]\displaystyle{ [\mathrm{Fe}(\mathrm{H}_2\mathrm{O})_n]^{3+} }[/math] - Fe ion in 64 H2O bulk cell with 3 valence electrons put in the background charge
- [math]\displaystyle{ [\mathrm{Fe}(\mathrm{H}_2\mathrm{O})_n]^{2+} }[/math] - Fe ion in 64 H2O bulk cell with 2 valence electrons put in the background charge
Thermodynamic integration (TI) is used to calculate the free energy difference ΔA using the following basic equation:
[math]\displaystyle{ \Delta A = \int_0^1 \langle U_1 - U_0 \rangle_{\lambda} d\lambda - \mu n }[/math]
where U0 and U1 are the potential energies of the non-interacting and interacting states, respectively, λ is a coupling parameter, μ is the chemical potential (relative to vacuum), and n is the number of electrons in the half-cell reaction.
Three thermodynamic integrations with machine-learned force fields (MLFFs) are described from non-interacting (λ=0) to interacting (λ=1) systems:
| TI | λ=0 | λ=1 | Term |
| MLFF:MLFF | Oxidized (Fe3+) | Reduced (Fe2+) | [math]\displaystyle{ \Delta A_{\mathrm{ML}} }[/math] |
| MLFF:GGA | MLFF (Fe3+) | RPBE+D3 (Fe3+) | [math]\displaystyle{ \Delta A^{\mathrm{FP}_\mathrm{GGA}-\mathrm{ML}}_0 }[/math] |
| MLFF:GGA | MLFF (Fe2+) | RPBE+D3 (Fe2+) | [math]\displaystyle{ \Delta A^{\mathrm{FP}_\mathrm{GGA}-\mathrm{ML}}_1 }[/math] |
Finally, the absolute redox potential on a GGA-level [math]\displaystyle{ \Delta A^{\mathrm{FP}_\mathrm{GGA}} }[/math] is calculated:
- [math]\displaystyle{ \Delta A^{\mathrm{FP}_\mathrm{GGA}} = \Delta A ^{\mathrm{ML}} + \Delta A^{\mathrm{FP}_\mathrm{GGA}-\mathrm{ML}}_1 - \Delta A^{\mathrm{FP}_\mathrm{GGA}-\mathrm{ML}}_0 }[/math]
Input files
POSCARs

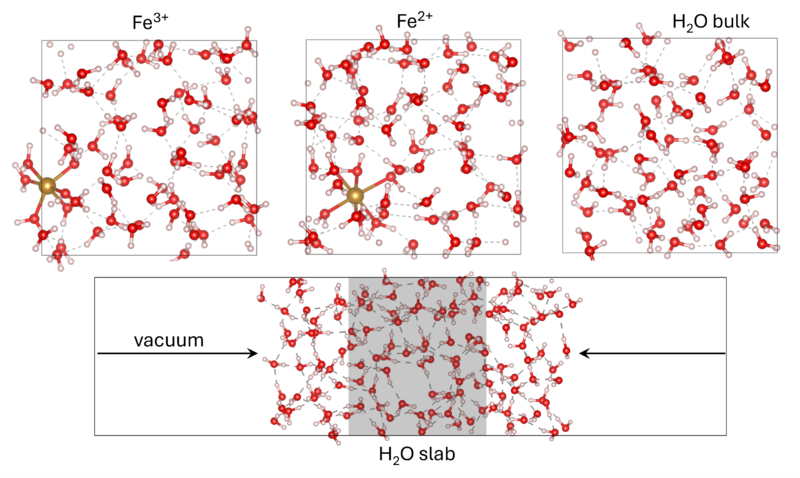

The chemical potential requires four different systems: bulk H2O with 64 molecules (64H2O_bulk), Fe3+ in 64 H2O (Fe3P_64H2O), Fe2+ in 64 H2O (Fe2P_64H2O), H2O slab with 128 molecules (128H2O_slab), that is, a bulk water reference, [math]\displaystyle{ [\mathrm{Fe}(\mathrm{H}_2\mathrm{O})_n]^{3+} }[/math], [math]\displaystyle{ [\mathrm{Fe}(\mathrm{H}_2\mathrm{O})_n]^{2+} }[/math], and the water slab.
Fe3P_64H2O), top center: Fe2+ in 64 H2O (Fe2P_64H2O), top right: bulk H2O with 64 molecules (64H2O_bulk), and bottom: H2O slab with 128 molecules (128H2O_slab).Click to reveal the
64H2O_bulk POSCARWater
1
12.42128700 0.00000000 0.00000000
0.00000000 12.42128700 0.00000000
0.00000000 0.00000000 12.42128700
H O
128 64
Direct
0.36257633 0.37953597 0.67785342
0.42947178 0.43286249 0.59010358
0.66870393 1.13989162 0.58842641
0.70823249 1.22041509 0.67807457
0.35637008 0.05839855 0.21517466
0.44580288 0.01834909 0.16004703
0.44380894 0.67759921 0.05971511
0.44857483 0.64047308 0.17235572
1.14522157 0.76633728 -0.07286828
1.26197238 0.78911446 -0.10391832
0.56790416 1.14251886 0.92143084
0.60754105 1.14691841 0.80551737
0.75633099 0.25670520 0.32073462
0.75786987 0.15087192 0.26471573
0.74642803 -0.03671116 1.07026855
0.68277568 -0.08917103 1.16765095
0.08323566 -0.02515907 -0.01412446
-0.00880432 1.02342521 0.04212898
0.68157988 0.24579303 0.03134658
0.60083186 0.23578159 0.12220439
1.14251010 0.79368279 0.23822678
1.03381447 0.81936982 0.30217442
1.45625953 0.82211861 -0.39364182
1.33249296 0.84676639 -0.38681569
0.73773505 0.37233458 0.47040761
0.62289024 0.34929795 0.43767209
0.63992674 0.70350215 0.78737637
0.67764626 0.66562038 0.90017103
0.38737624 0.10112290 0.97816413
0.44041019 0.20087678 1.04654040
-0.74229635 0.27326641 0.85574288
-0.86480570 0.30089547 0.83717409
0.98781733 0.58627453 1.16338342
0.98642719 0.45910015 1.19257026
0.32814541 0.15987161 0.50362237
0.25642761 0.26648016 0.48295405
0.69811093 -0.56389784 0.28108666
0.70770558 0.42946360 0.15518042
0.18565685 0.52373867 0.56827259
0.08659439 0.58375638 0.51565848
0.44991203 0.27342036 0.48425454
0.55101593 0.27228106 0.56380912
0.41624326 -0.17788427 0.80896103
0.50257275 -0.21360866 0.89707634
0.28998176 0.48372062 -0.01768589
0.19491021 0.39742192 -0.01269715
1.06654096 0.36410409 0.63682306
1.03975716 0.44960909 0.73041188
0.50170068 1.61380686 0.40736049
0.49942205 1.73793230 0.43266624
0.37390409 0.30295427 0.17857302
0.34033093 0.38510006 0.09520283
0.30807694 0.20122962 0.31494909
0.22529499 0.19805563 0.21739075
1.12308748 0.37150659 0.42477646
1.06276778 0.26307066 1.46962386
-0.15792914 0.29610530 0.85397054
-0.07308234 0.27252743 0.77021418
0.85228948 0.16062637 0.95526886
0.89963468 0.18253764 1.06178327
0.19181780 0.04626484 -0.19418583
0.15189262 -0.06556287 -0.18492234
-0.10238306 0.45933074 0.94465075
0.78170215 0.43034159 0.95991840
-0.04726476 0.53527628 0.38000776
-0.10379563 0.60547798 0.46538564
-0.00098972 1.02353900 0.73537767
-0.10239174 1.10640574 0.72833236
0.83303676 0.93517612 0.67263678
0.72416689 0.88061601 0.69336360
0.83396381 0.79727679 0.33276158
0.84935945 0.89986765 1.25490788
0.43767040 0.26474088 0.82690407
0.40610758 0.19731651 0.73463453
-0.22521691 0.99033821 0.52178482
-0.21732111 1.08901868 0.43461921
0.55979128 0.65441008 0.58905315
0.51739017 0.64402769 0.70843828
1.15263203 0.22553743 1.04375491
1.05410314 0.23287904 1.11317058
0.40787600 0.01178034 0.65057706
0.46239323 0.06947748 0.55789921
1.22298533 -0.28915950 0.52942510
0.19053464 -0.18268639 0.46366419
0.34645899 0.68043144 0.72737986
0.36594763 0.55141902 0.69243633
0.56017599 0.33134538 -0.03087852
0.61388449 0.39021229 -0.12522124
0.38664251 -0.13040994 -0.70002278
0.35405937 -0.19423015 -0.59774517
0.73338812 0.70036370 0.46781396
0.80345417 0.77305746 0.53896313
0.70280496 0.86052960 0.87581100
0.72653862 0.98582519 0.88541416
0.94986235 0.10516542 0.53628061
0.99735924 1.10316818 0.41487930
0.34586913 0.92208748 -0.04377027
0.27835954 0.97034641 0.04814922
0.88788268 1.29429166 0.20459804
-0.10649273 1.36074553 0.09165817
0.39371787 0.57519096 -0.11020542
0.46220136 0.48981436 -0.05946583
0.89286511 0.79370028 0.86701692
0.96099685 0.84339162 0.96334218
0.62514345 0.53133485 0.73825559
0.73640530 0.50006566 0.71024894
-0.12902917 0.72677131 1.16320660
-0.11814514 0.70432566 1.03349629
1.01129606 0.61898608 0.90675712
1.09968460 0.53447870 0.92387699
-0.14457334 0.35937352 0.63141164
-0.11499539 0.45568803 0.54735066
0.48813670 0.98589446 0.40760031
0.60110088 1.02927414 0.43954578
-0.37236788 0.57165925 0.04667849
-0.24946342 0.60016434 1.06579556
1.07450858 1.10382861 0.26264566
1.12554235 0.99644744 0.31325744
0.62490856 0.06519849 0.18845978
0.54885406 0.10569865 0.28792416
0.55694560 -0.17713139 0.27541275
0.56084272 -0.21506154 0.16885793
0.12891427 0.50587770 0.28000948
0.23833432 0.43434745 0.29542543
1.48346125 0.46743806 0.19449182
1.57481458 0.52369865 0.24680216
0.17873553 0.62275568 0.11942301
0.26852366 0.68872043 0.07818815
0.35693455 0.43925319 0.62530196
0.64792950 1.20400828 0.63184735
0.39412198 -0.01057009 0.20787038
0.43581616 0.71008914 0.13099142
1.19397105 0.77903373 0.85946991
0.63615555 1.12938446 0.87822715
0.80661353 0.20330608 0.29232873
0.73246578 -0.02838354 1.14624509
0.03244721 -0.04025903 0.03944908
0.63721217 0.28885881 0.08035039
1.11493495 0.82738114 0.30859190
1.39883698 0.85058088 -0.34459284
0.69698494 0.36107968 0.40464588
0.64192914 0.72485162 0.86089438
0.45396944 0.13747103 1.00222318
-0.81120011 0.28079526 0.89372357
1.01585028 0.52957121 1.21343372
0.31821591 0.22470258 0.45731626
0.70888882 -0.51685513 0.22019861
0.13832317 0.58769764 0.57254578
0.51028551 0.31315460 0.51155010
0.42617734 -0.19946999 0.88578770
0.21795347 0.46397897 0.02254897
1.03345078 0.37392845 0.70810584
0.53447426 1.66561969 0.45708230
0.40848000 0.35179327 0.12578669
0.30420794 0.19684477 0.23570844
1.10944135 0.32634895 1.48853144
-0.15068923 0.25159638 0.78858129
0.84350236 0.13666558 1.03077541
0.12621458 0.00799599 -0.18726449
-0.14969491 0.39803889 -0.04386545
-0.05257019 0.54926511 0.45604016
-0.07042394 1.04132825 0.69759096
0.77456016 0.89777696 0.63596725
0.87893918 0.82791839 1.27826204
0.37199961 0.24693838 0.78669458
-0.26629559 1.03776777 0.47472997
0.58383474 0.64578572 0.66290779
1.11758097 0.18829015 1.10755225
0.41441089 0.08360444 0.62404569
0.25236886 -0.21779138 0.50357805
0.38654211 0.61365045 0.74790977
0.54189953 0.36543129 -0.10123356
0.41572204 -0.15596095 -0.63075239
0.80055913 0.73724417 0.46650168
0.76508964 0.91308708 0.87755337
0.94189130 0.13529024 0.46400834
0.29460037 0.97883985 -0.02591476
-0.06126178 1.32786996 0.14953350
0.41172576 0.54824212 -0.03901993
0.94501130 0.77310663 0.92132598
0.69302524 0.50734691 0.77446848
-0.13207205 0.66750977 1.10613301
1.02911948 0.53980433 0.89023275
-0.17248923 0.40767816 0.57425135
0.52217208 1.04992599 0.43651343
-0.30113028 0.57147331 0.01268190
1.11295226 1.07452050 0.32297073
-0.41735391 0.12325009 0.21804170
0.61116931 -0.19691698 0.22556446
0.17536968 0.46512423 0.32953214
1.49704038 0.52822279 0.24728978
0.19113993 0.69295724 0.10392182
Click to reveal the [math]\displaystyle{ [\mathrm{Fe}(\mathrm{H}_2\mathrm{O})_n]^{3+} }[/math] POSCAR
Fe_64H2O
1
12.42282200 0.00000000 0.00000000
0.00000000 12.42282200 0.00000000
0.00000000 0.00000000 12.42282200
H O Fe
128 64 1
Direct
-0.38272023 0.47236734 0.69895078
-0.27203601 0.41866794 0.72914269
0.60916541 0.72796225 0.09306829
0.71070494 0.78725068 0.14392771
1.08865564 0.93820602 0.24600432
1.03755512 0.98120737 0.35350048
0.04276558 1.23801733 0.56678300
0.45616640 0.36926572 0.39344586
-0.16977976 0.40716591 0.53863440
-0.25237329 0.38130525 0.44755164
0.44169261 1.14516978 0.14529032
0.37457743 1.13530301 0.24819417
0.18407518 0.25222959 0.06812304
0.09998538 0.14744161 0.06444770
0.27831295 0.57479968 0.31380844
0.29633366 0.45926581 0.36724418
0.64763154 -0.53184911 0.87002912
0.63022496 0.40977773 0.99107908
0.47906160 0.58853267 0.63100265
0.59945353 0.62329058 0.64816927
0.87712851 0.41898140 1.07505748
0.26314503 -0.13253460 0.01243951
0.16153170 -0.19745195 0.05804701
0.34412600 -0.01810085 0.81692911
0.14554222 0.77130921 -0.25213594
0.21209078 0.79452634 -0.14442072
0.41500251 0.04461290 0.96837924
0.49008610 0.14359786 0.93019679
0.82125847 0.86254586 1.27147476
0.00873717 0.10267666 0.23211446
0.35980746 0.34237108 0.76169366
0.33485343 0.46345006 0.77046483
0.90320251 0.61221204 0.04264507
0.97690745 0.71802735 1.06017819
0.96030764 0.81465128 0.70019704
1.01749178 0.74674122 0.60432752
0.64007416 0.23981183 0.92947124
0.31788389 -0.12374136 0.74827741
0.99321033 0.93631524 0.55767630
0.15487454 0.51028490 -0.09542554
0.66815917 0.79686891 0.72718580
0.76202793 0.70002522 0.75366280
0.13591369 -0.02901335 0.00566347
0.08957800 1.06396642 -0.07143824
0.53392446 -0.11896063 0.23953882
0.48718378 -0.00799262 0.25860106
-0.07163033 1.26809135 0.50762252
0.67405502 0.12105566 0.95083205
0.74551359 0.62681866 0.34775553
0.66650260 0.64357368 0.25540936
0.38872827 0.12804968 0.55656518
0.33782256 0.21579745 0.49248801
0.92231233 -0.04307885 1.00089073
0.79411522 -0.04854941 1.01531498
-0.40705912 1.12847907 0.48347215
0.65420892 1.23981902 0.47957005
0.84599640 -0.09249550 0.84023452
0.80327236 0.97997213 0.74592535
0.88638541 0.47237368 0.72110537
0.88941805 0.35493190 0.74249811
0.55296221 0.93428417 0.55243420
0.51441228 0.92952738 0.43767406
0.73847683 0.51634987 1.03266322
0.40092134 0.63952229 -0.01737781
0.41176789 0.89134362 1.10615330
0.44444253 0.84405868 0.99393367
0.58073572 0.63347610 -0.04423652
0.60854638 0.72933752 -0.11607112
-0.16580359 0.22001380 0.89963070
-0.04391612 0.21085677 0.85654400
0.40533602 0.50000334 0.11555470
0.34998095 0.38355577 0.10448457
-0.24359234 0.77537730 0.45894937
-0.26614437 0.70560002 0.56106171
0.28303298 0.61126441 0.01597951
0.37578327 0.33380444 0.30290136
0.59618764 0.27699048 1.12423906
0.50319683 0.35108728 1.09799129
0.18989659 0.76741117 1.22566037
0.06153560 0.75549602 0.22936925
0.51785592 0.24354330 0.65223118
0.56708719 0.32005973 0.73245604
0.61206395 0.98022340 0.70759384
0.50678625 0.91620503 0.71723010
0.68602440 0.14707860 0.76412395
0.69294218 0.12172781 0.64036372
0.33488986 0.71525634 0.14956129
0.35814895 0.80854785 0.22920363
0.95945912 1.05245660 0.53679791
0.77994512 0.55222218 1.15138214
0.69626269 0.94689443 0.43758767
0.82244291 0.95270203 0.44158402
-0.08533410 0.30668689 0.99691887
0.88689642 0.15254779 0.21721075
0.96565778 0.66203563 0.74352603
0.91899641 0.64391575 0.86105003
0.60192845 0.32627053 0.34541527
0.54412777 0.22739074 0.29056180
0.33801876 0.24481339 -0.03610605
0.27498242 0.34868783 -0.07124872
0.63970642 0.49240211 0.35877270
0.61552019 0.46892953 0.48438447
0.30584874 0.64699933 -0.22951580
0.42787645 0.64881697 -0.19623458
0.05975532 0.12314654 0.75074831
-0.02832220 1.03112946 0.76086242
1.07382577 0.25251612 0.39457391
1.17074101 0.24004400 0.30909053
0.90882853 0.66787644 0.52270722
0.07399163 0.59412808 0.95304999
0.13906082 0.47905225 0.10518101
1.17121656 0.46180650 0.23562581
0.97971011 0.63429872 0.37278291
0.90631471 0.68858591 0.26904690
0.60516786 0.96463888 0.06395544
0.68233031 1.04347277 1.12012494
0.20897747 0.21380315 0.63498998
0.20507421 0.29490009 0.72649781
0.21069366 1.05104536 -0.68658423
0.27938942 1.09406910 0.40078460
0.70263174 0.14455648 1.25970691
0.75730930 0.04722448 1.29768294
0.91307779 0.40130091 0.34978752
0.94369056 0.50994390 0.28013594
0.08933991 0.43228293 0.60852163
1.17837154 0.48628664 0.53072146
1.00504493 0.58007882 0.54073092
0.86291931 -0.13828811 1.15173275
-0.34491075 0.43621986 0.75416516
0.63900568 0.75492759 0.15829659
1.07199795 1.00257563 0.28363155
0.38420131 0.34485841 0.37967695
-0.17342306 0.37643136 0.46438657
0.45349630 1.14005000 0.22505348
0.11869813 0.21939929 0.09604324
0.23622993 0.50759344 0.33909324
0.64875252 0.47771851 0.95286519
0.55590506 0.57693205 0.60050819
0.18736673 -0.15437724 -0.00677806
0.37523088 -0.06818877 0.76435686
0.21811495 0.76245384 -0.22055952
0.42220970 0.12606004 0.96558981
0.85780135 0.81574581 1.21531426
0.30433544 0.39124488 0.77849745
0.95758533 0.65697710 1.00747411
1.03085555 0.79681957 0.66923251
0.69067343 0.18643375 0.90833405
0.96523126 0.16955239 0.22035170
0.68612747 0.72230731 0.74299918
0.08987161 0.03581255 0.00348357
0.46357734 -0.08420990 0.24196675
-0.01222913 1.21468404 0.51335175
0.71162904 0.58691114 0.28804098
0.32268708 0.16090339 0.53975026
0.86234882 -0.08436224 0.98773807
-0.38355188 0.19092778 0.52248232
0.85291582 -0.08281162 0.75894361
0.86323773 0.40597333 0.69118967
0.54292990 0.98123241 0.48667605
0.80728528 0.53397589 1.07560692
0.39528125 0.89790682 1.02768167
0.56047647 0.70886600 -0.05694049
-0.09585039 0.25981162 0.89091800
0.40071565 0.42814971 0.14908255
-0.23238312 0.70278251 0.48864911
0.35169257 0.62880569 0.04279978
0.56212715 0.31299799 1.06345122
0.12066294 0.79773619 1.19966391
0.51154081 0.26173878 0.72839369
0.58450605 0.90652737 0.69203180
0.70957535 0.09399646 0.71195964
0.32002783 0.74390105 0.22241023
0.95247763 0.97831298 0.50380136
0.76168681 0.93342180 0.39565898
-0.07590969 0.35133103 1.07020111
0.90649162 0.63028257 0.78114555
0.61524001 0.25974801 0.30414551
0.30266553 0.31064613 -0.00899828
0.62120647 0.43621160 0.41233540
0.36878355 0.59976322 -0.20951626
0.00592307 0.09406140 0.79582533
1.10947213 0.28743919 0.33114811
0.13898678 0.54360995 0.97023057
1.15168897 0.42574337 0.16437693
0.96099089 0.62982868 0.29120309
0.66514203 1.00695060 0.04564722
0.15635030 0.24896214 0.68388955
0.26078411 1.11001890 0.32632346
0.75255117 0.09346553 1.23417762
0.93550375 0.42521425 0.27361930
1.12555194 0.49730673 0.58995753
0.97951694 0.64650296 0.50479031
1.02535902 0.32276265 0.18627127
Click to reveal the [math]\displaystyle{ [\mathrm{Fe}(\mathrm{H}_2\mathrm{O})_n]^{2+} }[/math] POSCAR
Fe_64H2O
1
12.42282200 0.00000000 0.00000000
0.00000000 12.42282200 0.00000000
0.00000000 0.00000000 12.42282200
H O Fe
128 64 1
Direct
0.12743711 0.48760461 0.68402834
0.07224030 0.59099573 0.69720079
0.39623895 0.90251919 -0.68562329
0.52396846 0.89222892 -0.69202626
0.42964083 0.63656491 0.92024856
0.40471536 0.51747508 0.92244566
0.50949529 0.22553243 0.82975356
0.79695561 -0.29210416 -0.14766098
0.00805766 0.01676094 0.93033834
-0.01969191 0.14077136 0.89733509
0.01773692 1.49221026 -0.45662142
-0.09754205 1.45083180 -0.48707747
0.28568895 0.07977712 0.14809775
0.40460027 0.11889958 0.12632577
-0.44823614 -0.23392047 0.91065326
-0.44655395 -0.27382665 1.03236410
0.55758309 0.63486700 0.51461921
0.54015662 1.52364880 0.45450703
0.67045916 0.85136844 0.58289035
0.71164261 0.89435637 0.47626762
1.16684705 0.13193713 0.89590371
0.33871812 0.20748811 0.69296855
0.38041592 0.31864036 0.75378916
-0.26840230 -0.60381695 0.57433173
0.25751301 1.09723808 -0.39131073
0.28561906 1.17135043 -0.49010853
-0.15559770 0.77405954 1.51947552
-0.03350167 0.77676575 1.52339975
0.75237735 1.02309221 1.12180723
0.04826055 0.15234086 0.05862687
-0.09230147 -0.06114088 1.02402855
-0.07779336 -0.14013315 0.92524744
0.68560087 0.63322667 1.36320530
0.79400335 0.69800156 2.34722324
1.01111679 0.16477327 0.53663862
0.98618018 0.28565957 0.49809698
0.20452861 0.81136804 0.83127978
-0.29824646 -0.48415938 0.54811270
0.37502040 1.26549068 0.41257460
1.30154976 0.64025841 0.11667748
1.75290818 0.59403116 0.98316689
1.65052923 0.63412803 0.91547295
0.75375838 0.00138371 -0.37473678
0.76130867 1.05807834 -0.25911110
-0.05696647 -0.29493528 0.76468746
0.02811791 -0.33267590 0.85098776
0.61065413 0.29830310 0.85951557
0.11763966 0.86822584 0.90729729
0.18919114 0.55109134 0.38993918
0.21099928 0.52226945 0.51012484
0.03269714 0.36292005 0.33650725
0.02620788 0.48115860 0.28181401
1.05541232 0.90157404 0.64524915
1.07849658 0.77961507 0.68820380
-0.62352298 1.63205141 0.30877689
0.43788457 1.73907737 0.26620496
0.64515164 -0.84752695 1.12986454
0.64730542 0.18633377 1.26064334
0.19923207 -0.08426170 0.07502044
0.22493320 -0.20749942 0.08281964
0.78950677 1.18291196 0.57758905
0.83466268 1.23338961 0.48038196
1.10490483 1.28683406 0.74494774
0.29928808 0.66864147 -0.17842015
0.69120317 0.84829619 1.11035412
0.67223805 0.75611954 1.18775106
-0.00106366 0.61277354 0.38525072
0.01326608 0.68609575 0.28998127
-0.07137268 0.05723237 0.64512696
0.03262162 0.06902330 0.71661499
0.77907316 0.40440365 0.75246685
0.73437154 0.47097142 0.84530449
0.22165260 0.78128841 0.57222522
0.24873347 0.68762843 0.48624453
0.21948415 0.65300265 -0.26571256
0.79089209 -0.20809083 -0.24704170
1.11107834 0.01381845 0.32957265
1.03239487 0.10538648 0.35890625
-0.22306466 1.43601128 1.11757892
-0.24593929 1.53904148 0.17695298
0.53330947 -0.13832394 0.74775872
0.48380538 -0.08752260 0.84569979
0.33958593 1.05428999 0.90703938
0.29513801 0.93047632 0.90464110
-0.10080201 -0.17071890 0.20726349
0.00812468 -0.20258160 0.13847835
0.08102303 0.64583254 0.03494449
-0.04079584 0.61193214 0.04209357
0.35121443 1.17006312 0.32377652
1.18017291 1.28895470 0.63748305
0.44815316 0.76165600 -0.42603898
0.46425067 0.68605942 -0.32598380
0.26710057 0.21583209 0.85066344
1.08895608 0.13400129 0.17359061
0.65188184 1.12136051 0.88104293
0.65005020 0.99400031 0.86041374
0.74276310 0.93357167 0.31617568
0.65193906 1.01050888 0.33337941
0.22155564 -0.06334224 -0.33974479
0.31584241 -0.05457389 -0.25072038
0.46701413 0.39534529 0.33741153
0.37353168 0.43618379 0.40490478
0.88534124 0.31114574 0.85608235
0.90593210 0.27739909 0.97341481
0.39857237 -0.04387750 0.56182123
0.47095275 1.02320312 0.49993905
1.25892990 0.45837652 0.17875477
1.15656687 0.39089427 0.22252886
0.51644837 0.17070272 0.40580457
1.27940834 0.60940694 0.99753791
0.42616197 0.40350440 0.06681017
1.44539498 0.30393771 -0.01376590
0.46562325 1.01534518 0.03284939
0.50319974 0.99064681 0.15470387
0.81037140 0.25082530 0.14657752
0.90914722 0.31376690 1.17885883
0.90887977 0.86774057 1.39942038
0.94187889 0.97203833 1.33441155
0.22890408 0.88765248 0.26506994
0.22943934 0.87502350 1.39740388
0.49252993 0.56873322 1.17531223
0.58322974 0.47973985 1.18073167
1.07353906 0.35801775 -0.07352972
1.10345201 0.46291908 -0.00569576
0.56233028 0.47301291 0.65701182
1.50111441 0.39245196 0.57504212
0.64733050 0.17609466 0.44047892
0.76155406 -0.00064089 0.99805907
0.11696365 0.55392898 0.64536596
0.45665944 0.88787932 -0.73431062
0.37333616 0.58173353 0.89358570
0.83287880 -0.23084103 -0.18836803
0.03157586 0.08326143 0.89500066
-0.01967168 1.44066290 -0.50120574
0.32649692 0.14675159 0.14354441
-0.47815402 -0.28476352 0.96183234
0.58825114 1.58190086 0.46693607
0.73530757 0.86486122 0.54696653
0.36850393 0.23869519 0.76098331
-0.24064441 -0.53169325 0.57977533
0.24867886 1.17176032 -0.42128557
-0.09114394 0.73086170 1.49415350
0.77082046 0.96821649 1.06941593
-0.03834292 -0.10477073 0.98185130
0.72904928 0.67702858 2.31155822
0.98643994 0.21068855 0.47648425
0.18404121 0.88355581 0.86864094
1.08703359 0.18844511 0.11444108
1.71734102 0.59616846 0.90840384
0.79123200 0.05674886 -0.33394462
0.02043659 -0.31156425 0.77570162
0.56069314 0.24338431 0.88537227
0.24569014 0.53057214 0.44182948
0.03448211 0.40131521 0.26357804
1.09819988 0.83512130 0.63612042
-0.60356192 0.67216851 0.24349363
0.68641610 -0.81762609 1.18817124
0.21611881 -0.14120573 0.12450673
0.76919341 1.22245249 0.51393968
1.14696413 1.32734585 0.69656507
0.65811040 0.77819298 1.11522722
0.04903142 0.62925399 0.32627031
0.01260756 0.05983530 0.64228866
0.74653920 0.39814097 0.82582336
0.26593357 0.76215637 0.50729285
0.25423481 0.71079817 -0.23075499
1.04656732 0.05170956 0.30685598
-0.27090311 1.50034802 1.11590884
0.55144479 -0.10997314 0.82138721
0.36595179 0.97842307 0.90355956
-0.04879022 -0.22282940 0.18797022
0.02303649 0.60374665 -0.00064438
0.36248716 1.18806896 0.40233898
0.50553342 0.72818132 -0.38174573
0.23339102 0.17685431 0.91622715
0.69519318 1.05764833 0.86986144
0.66244443 0.93542605 0.32313623
0.29157406 -0.03443908 -0.32197353
0.43576289 0.39304384 0.41288487
0.93290635 0.26807660 0.90192508
0.46947458 -0.04604768 0.53317357
1.23797107 0.38686102 0.19701795
1.24279488 0.62426866 1.06753929
1.39453671 0.36177382 0.00797544
0.49872289 1.04632858 0.09816681
0.86030136 0.31356352 0.11502915
0.87609952 0.92053833 1.35250286
0.23398309 0.92340184 1.33460122
0.50301930 0.49047944 1.17320678
1.13069333 0.39166539 -0.03166013
1.52690177 0.40275423 0.64871882
0.59258213 0.16054156 0.38717393
1.22868038 0.27296875 0.05742047
Click to reveal the
128H2O_slab POSCARSYSTEM
1
12.50000000 0.00000000 0.00000000
0.00000000 12.50000000 0.00000000
0.00000000 0.00000000 50.00000000
H O
256 128
Direct
-0.15047607 0.45334683 0.32730556
-0.07219808 -0.49010458 0.34403411
0.63805046 0.03123465 0.46999929
0.50838374 0.00754431 0.46372876
0.20742016 -0.23715390 0.31145651
0.21957350 0.63504600 0.31129793
0.49252565 0.97213243 0.52739381
0.46254946 0.86699495 0.51338367
0.46833659 0.30083696 0.47570094
0.56435815 0.28642228 0.46051829
0.73586863 -0.12693724 0.63650708
0.75181963 -0.25406949 0.63203814
0.41854353 0.84406884 0.44927074
0.33515626 0.90054023 0.46728072
0.34479509 0.57962028 0.37911763
0.29762780 -0.47903310 0.40660055
0.15115248 0.54108257 0.49957979
0.08260965 0.53074503 0.52635427
0.89266849 0.40696421 0.52478091
-0.06057907 0.40486920 0.55352216
0.55977900 -0.37296647 0.61748251
0.53858714 -0.26767121 0.59987163
0.71275400 0.42250550 0.56832405
0.78839559 0.34546846 0.58417890
0.67385329 -0.19610180 0.44987464
0.59318198 -0.16624091 0.42828513
0.12312508 0.37123899 0.28937208
0.05023666 0.27675971 0.29997236
-0.16681739 1.58406768 0.63195176
-0.21800579 1.57002107 0.66191007
0.20675683 -0.06108281 0.29221359
0.10312049 -0.09294129 0.30396903
0.20277637 0.06067826 0.60416144
0.19887396 -0.00744650 0.62890026
0.42062864 -0.24439336 0.35497596
0.36814211 -0.33879224 0.34193308
-0.46114333 0.32802380 0.39548517
0.45713828 0.41873416 0.39179412
1.05751346 0.29067408 0.55923161
1.04348507 0.18703047 0.57744764
0.21179010 0.87249263 0.56793233
0.09036024 0.85931851 0.57432053
0.60751605 1.01609789 0.65259722
0.72696147 1.05338974 0.65871807
0.44683747 0.21956247 0.29940199
0.48216169 0.19981749 0.26927194
0.10930269 0.40445023 0.47082959
0.17010928 0.50009382 0.45569496
0.78757796 -0.20083679 0.40459572
0.81784835 -0.20993279 0.37400609
0.63044955 -0.50216422 0.32507910
0.61823261 -0.56783464 0.29754461
0.38298254 1.64224442 0.61713447
0.27391580 1.65127025 0.62769264
-0.18349257 0.40823838 0.42743175
-0.11707568 0.32822140 0.44206697
0.37713689 0.15324147 0.36153587
0.47188832 0.15561964 0.38076476
0.84313290 0.66869553 0.54540293
0.78036268 0.55967659 0.53781156
0.62834565 0.07729786 0.39976222
0.58336683 0.13133194 0.42359675
1.57461032 1.43827952 0.71246905
1.47093630 1.44260924 0.69550961
0.56330564 1.09120276 0.50193580
0.61593811 1.12895503 0.52786251
0.73348421 0.31660428 0.46194097
0.75096480 0.20702765 0.47568711
0.18544389 -0.23514793 0.40166768
0.22931162 -0.14674533 0.42153910
0.36292308 0.50876490 0.64987458
0.33531338 0.38470088 0.66057777
1.49747974 -0.54677440 0.44932443
0.51766749 -0.42535318 0.46152212
1.85759374 0.75185320 0.76879203
0.88557936 0.66337125 0.74776712
0.66151301 0.68965700 0.41313588
0.60698800 0.57649179 0.41787791
-0.21783861 0.90704975 0.72268493
-0.18062377 1.02010056 0.73108294
0.79398077 0.91221618 0.53177815
0.89172292 0.88245064 0.51170593
1.21360535 1.19956259 0.58314768
1.23188220 0.10388812 0.56520461
0.69217913 -0.02288592 0.35644459
0.65013288 -0.02349422 0.32542268
0.49314736 0.09990072 0.55428120
0.40698133 0.13735440 0.57630192
0.06940342 0.10352406 0.53021711
0.12918295 0.01423295 0.54673459
1.23761207 0.03882752 0.37085803
0.23384130 0.05388881 0.33858930
-0.50295222 0.92300366 0.74813821
-0.38930037 0.97841032 0.74266531
0.13655853 0.16157403 0.39040653
0.15373516 0.09867462 0.41870070
0.35793276 0.15462364 0.64561652
0.44313351 0.08542197 0.66008140
0.12490452 1.60323574 0.67914603
0.10103912 0.67758518 0.66052594
-0.02910081 -0.04303719 0.33290797
-0.08397074 -0.06715582 0.30625602
0.47100963 -0.31135459 0.42347049
0.44678381 -0.21727665 0.40309666
0.17380547 1.23522872 0.64351497
0.28087835 1.29207879 0.63186950
0.72243965 1.04679669 0.60136565
0.77633776 1.15885707 0.60968516
0.20332595 1.15182338 0.29172154
0.31769260 1.09822536 0.28860721
0.90406410 0.53849761 0.41088426
0.78463589 0.58505950 0.41470974
1.12942702 1.53845314 0.71988868
1.20054880 1.43235266 0.71382259
-0.17158886 0.30160650 0.40269399
-0.07101085 0.26515881 0.38366272
0.74322462 1.32613449 0.64589263
0.77475704 1.41411198 0.62227898
0.14620565 -1.10616729 0.48008239
0.18160223 -0.03968360 0.50606301
-0.11186987 0.94149530 0.65599853
-0.13718975 1.02669042 0.63199678
0.56159298 0.19900069 0.59311202
0.55920469 0.18285975 0.62176711
0.90336505 0.15667383 0.52548512
0.98450787 0.25110265 0.52511525
0.97847305 -0.42779836 0.72340892
1.02887897 0.67051183 0.71108441
0.93053153 -0.03352705 0.43016463
0.94358325 0.08994529 0.42307038
-0.12458051 0.56502080 0.45311411
-0.04730932 0.59270705 0.47590220
-0.26829199 0.80830572 0.49363371
-0.21717255 0.70457633 0.48040899
0.43110180 0.68638080 0.68890088
0.32510025 0.62119216 0.70042335
0.12431384 0.78282478 0.61843684
0.20700484 0.81000752 0.64341301
0.70384786 0.11901625 0.29636532
0.58157041 0.12693352 0.30130944
0.75363478 0.23168055 0.54459190
0.75644483 0.12259613 0.56105372
-0.03231861 0.12955620 0.32499376
-0.09853097 0.23584383 0.32218754
1.35833840 -0.44225252 0.44591484
1.25776038 -0.35606860 0.43991425
0.02974229 -0.01448169 0.38634402
-0.04925278 -0.12297578 0.38637941
0.07972722 -0.25141011 0.36219086
0.18306699 -0.31067445 0.35551374
0.92747522 0.76466556 0.60868816
0.95937680 0.87571382 0.62123825
0.52932163 0.57770897 0.50403614
0.58437494 0.68163282 0.49342216
0.32115740 0.82996586 0.67667456
0.25755504 0.94154338 0.67730506
-0.22810590 0.37614398 0.49430267
-0.18576922 0.49671288 0.49149878
0.65189321 0.70221781 0.55887514
0.58469375 0.80139057 0.54950481
0.45751382 1.14320451 0.73814919
0.45757048 1.25211787 0.71984711
-0.16073265 0.53318711 0.58413419
-0.04460020 0.52255466 0.59636621
1.23763588 0.27151415 0.53650362
0.26869350 1.37267158 0.55194387
1.56531541 1.75888578 0.65789015
1.64170785 1.76839833 0.68268336
1.17071819 0.30450968 0.36193986
1.07205789 0.24647217 0.34988931
0.66268682 0.39143410 0.35576888
0.77470013 0.33753052 0.36083320
0.48701966 -0.62651414 0.32289219
0.45172427 -0.71444999 0.34206563
0.89274414 0.87693241 0.57141470
0.77760242 0.86753703 0.58449204
1.22348599 -0.38621798 0.54275880
1.26314524 -0.31955173 0.56641379
0.93813763 1.18794820 0.71316474
0.91809214 1.10192472 0.69334364
0.61064405 0.92402610 0.60719628
0.55192305 1.01039312 0.59021354
0.96908959 0.73238970 0.67284455
0.86559314 0.75071650 0.65769890
1.05951362 -0.45354408 0.38093143
1.05009801 -0.58200279 0.37590291
0.76172957 0.49270651 0.70861525
0.72438777 0.60310359 0.69947487
0.43493202 1.01642204 0.62370834
0.41157215 0.90717107 0.63919892
1.28709531 1.22977646 0.71568664
1.22240102 1.24760104 0.69023856
-0.36929002 0.30112790 0.68799301
0.73835598 1.24904006 0.69307962
1.08438837 1.16887216 0.75281234
1.10337181 1.25880709 0.73309939
0.00881530 0.23511529 0.66153556
0.01992074 0.10863332 0.65331960
-0.18762204 1.76544824 0.69589571
-0.22099427 0.73159748 0.72364889
0.47402075 0.21823941 0.52156939
0.39449064 0.32549396 0.52603852
0.49229702 0.00642229 0.70437200
0.49041094 -0.09636789 0.68559144
0.31519106 1.45346432 0.61090090
0.38603816 1.37161975 0.59824648
0.15729732 1.50568246 0.63546369
0.21559092 1.47629782 0.66066682
-0.19454501 1.01393222 0.39591120
-0.22080313 1.12719611 0.38222917
1.06810038 0.81254123 0.53206673
1.06352248 0.70747723 0.51307936
-0.12638475 -0.55537021 0.26026243
-0.05760421 -0.65321822 0.26577609
-0.09042409 1.07196610 0.58294900
0.02325129 1.03828409 0.59636367
0.32063486 0.92608540 0.72659258
0.35574911 0.80830229 0.72123409
0.10412373 0.41841079 0.59896831
0.14274925 0.51651990 0.58178437
-0.19591148 0.07044928 0.45554844
-0.19021572 0.03340561 0.48590483
1.07785299 0.53236279 0.30851784
1.17527108 0.48273981 0.32369409
-0.05242302 0.21986278 0.47826685
0.04602452 0.20858933 0.45856538
0.40878055 0.29190606 0.42949757
0.35385287 0.26786429 0.40109729
0.91361281 1.37763527 0.70485166
0.92601382 1.37974445 0.73573816
0.49180218 0.49176486 0.55630311
0.38888954 0.54455977 0.56839724
0.74382564 0.28498135 0.31337726
0.81303180 0.29929615 0.28888582
0.23876821 1.20570242 0.44319221
0.19992227 1.11701411 0.46333591
0.59407806 1.36278641 0.60873199
0.54524237 1.46654437 0.59522322
2.02346307 1.41217476 0.66399254
1.91147497 1.37915850 0.65989115
0.09845777 0.03688460 0.69616599
0.09766268 -0.08531166 0.69167377
1.25808011 0.44420386 0.36149889
1.31081579 0.38358222 0.33934553
0.07353811 0.81613159 0.44176424
-0.02019300 0.78679404 0.46293839
0.38984424 0.83369934 0.56338610
0.37381688 0.87922811 0.59234427
0.51453372 -0.09541985 0.35009748
0.39484305 -0.06645979 0.35017125
0.55593924 0.38753163 0.51869390
0.66004756 0.46315941 0.51627573
0.64848801 0.61180544 0.37008072
0.57832658 0.64084106 0.34599612
0.75386845 -0.15146447 0.33086236
0.73564205 -0.27427126 0.33331691
-0.09648741 0.50938984 0.32488838
0.56504329 0.06286545 0.46968741
0.24293994 0.69761578 0.32091286
0.48108748 0.89535134 0.53166188
0.49757936 0.32553516 0.45789152
0.76744020 -0.18340073 0.62487691
0.41144876 0.90246316 0.46247378
0.31794376 -0.48573743 0.38681989
0.12877684 0.58271134 0.51624414
0.95851509 0.39985886 0.53493477
0.52243754 -0.30282985 0.61791897
0.76895759 0.37346632 0.56560940
0.66848522 -0.18560993 0.43043112
0.09074693 0.30162769 0.28441615
-0.20154125 1.61789646 0.64720226
0.17181260 -0.12468412 0.29662573
0.15700557 0.00871911 0.61363921
0.42233976 -0.32994901 0.35514866
0.53286785 0.40322511 0.39184579
1.07727341 0.25676911 0.57497686
0.13716955 0.87720865 0.55959520
0.68216863 0.99627546 0.65137040
0.45119708 0.16614064 0.28412456
0.10973328 0.48171438 0.46781222
0.84388934 -0.20664059 0.39174052
0.58303852 -0.54048463 0.31286474
0.32808472 1.59763404 0.62452336
-0.19165309 0.33704380 0.43457786
0.41823919 0.20183034 0.37245093
0.78587144 0.61673307 0.55124293
0.56011355 0.11309492 0.40567704
1.51701295 1.39737040 0.70673631
0.54695764 1.10711476 0.52102138
0.72131688 0.27947218 0.47879616
0.18444949 -0.21210987 0.42113103
0.36668171 0.45488107 0.66482426
0.49064798 -0.46503727 0.44561439
0.82820218 0.69414688 0.75657380
0.65847198 0.61537373 0.40712496
0.76748450 0.96128069 0.73583267
0.81730697 0.91059549 0.51275491
1.27220645 1.14795719 0.57873009
0.64741928 -0.05620926 0.34353694
0.48391157 0.12047094 0.57316210
0.14376608 0.06922992 0.53329165
1.27850839 0.03499489 0.35317314
-0.46354066 0.99485951 0.74685190
0.12508520 0.09293059 0.39933758
0.43296574 0.12732681 0.64290755
0.09700574 1.67696831 0.67957377
-0.02662689 -0.02348385 0.31412699
0.44363826 -0.24009345 0.42143376
0.25025628 1.24855748 0.64562073
0.79823150 1.08209822 0.60445310
0.24357641 1.08550799 0.29686686
0.84487510 0.54791453 0.42274978
1.20665739 1.51259035 0.71454551
-0.14852600 0.27439958 0.38483199
0.79875463 1.36570466 0.63635127
0.20013661 -0.05770220 0.48695782
-0.08803369 1.01243312 0.64786941
0.60681036 0.21343304 0.60836199
0.96760512 0.18267756 0.51744002
1.01869709 -0.36164031 0.72861865
0.89279549 0.03025280 0.42811891
-0.12190623 0.58173239 0.47257350
-0.28364610 0.74658147 0.48027041
0.35461305 0.69479199 0.69387913
0.17636099 0.75539076 0.63132326
0.64567772 0.08234767 0.30555919
0.74693252 0.15345949 0.54261621
-0.02750156 0.20761939 0.32607759
1.27987775 -0.43232854 0.43958099
0.00284833 -0.07336365 0.37560644
0.13403374 -0.30077764 0.37038742
0.98462893 0.81761037 0.60965656
0.51924082 0.63814697 0.49321682
0.28461449 0.88126714 0.66475622
-0.20914894 0.44302019 0.50652580
0.58914466 0.74769132 0.56398020
0.41471483 1.19061656 0.72530883
-0.12231266 0.52176874 0.60092233
0.26021422 1.34539425 0.53435665
1.56662855 1.77066279 0.67736079
1.10461724 0.26953014 0.36735832
0.72369042 0.35764108 0.34663600
0.43147580 -0.68083095 0.32528778
0.81926513 0.85574301 0.56746752
1.25134221 -0.39325035 0.56126973
0.87947711 1.14636757 0.70571444
0.62353030 0.97359658 0.59258366
0.91315731 0.79159814 0.67046472
1.00887481 -0.51613717 0.38007575
0.71990656 0.52980508 0.69520722
0.42715157 0.93815001 0.61949356
1.22065693 1.25957506 0.70894987
0.68302181 0.25679220 0.67873356
1.04556333 1.22974551 0.74538666
0.05950376 0.17484591 0.65818294
-0.25231321 1.76973735 0.70816158
0.45404841 0.29350534 0.51621152
0.47580393 -0.01885257 0.68583286
0.31607039 1.37827042 0.60641490
0.13921945 1.47529964 0.65395905
-0.24949740 1.04980313 0.38476573
1.02198254 0.77527198 0.51809412
-0.13269955 -0.63172943 0.26362895
-0.01665243 1.05122555 0.57819040
0.34830926 0.86183449 0.73481007
0.08547124 0.49199314 0.59517301
-0.22931968 0.07879046 0.47296684
1.15374394 0.51400513 0.30712860
-0.02575549 0.24426930 0.46122795
0.33910288 0.28875076 0.42031444
0.89222545 1.42242644 0.72114703
0.45112644 0.49752204 0.57217511
0.78732813 0.24777689 0.30076703
0.17546728 1.17137686 0.45167807
0.60114018 1.43939441 0.60809185
1.96388141 1.37112395 0.67251971
0.13553192 -0.02618932 0.70064801
1.23640886 0.39518318 0.34779401
0.01704024 0.84626979 0.45444055
0.34009588 0.83637329 0.57759905
0.44929940 -0.11284502 0.35947285
0.58008850 0.46021347 0.52387715
0.65101061 0.61092524 0.34954978
0.79285789 -0.22059881 0.33571374
INCAR
The INCAR file differs from step to step. Each is given on the how-to page that the corresponding step links to.
KPOINTS
The KPOINTS file contains only the Γ point:
Gamma-point only 0 Monkhorst Pack 1 1 1 0 0 0
POTCAR
Standard POTCAR files are used throughout:
PAW_PBE H 15Jun2001PAW_PBE O 08Apr2002PAW_PBE Fe_sv 23Jul2007
This is different to in Ref. [1], where GW POTCARs are used.
Step-by-step instructions
Step 1: Preparing the MLFFs
First, train the MLFFs for the water slab (128H2O_slab) and the redox pairs ([math]\displaystyle{ [\mathrm{Fe}(\mathrm{H}_2\mathrm{O})_n]^{3+} }[/math] and [math]\displaystyle{ [\mathrm{Fe}(\mathrm{H}_2\mathrm{O})_n]^{2+} }[/math]).
Step 2: Calculating the vacuum potential
Run a molecular dynamics (MD) simulation, then calculate the local potential [math]\displaystyle{ \phi }[/math] of the water slab. Using this, the difference between the Oxygen 1s level between the water slab and the water molecules far away from the ions in the redox cells can be calculated. This provides the chemical potential relative to the vacuum [math]\displaystyle{ e \Delta \bar{\phi} }[/math].
| Important: This step requires using GGAs on many structures, so will be more time-consuming. |
Step 3: TI from oxidized to reduced state
Perform a thermodynamic integration from the oxidized state (λ=0; Fe3+) to the reduced state (λ=1; Fe2+).
| Mind: This is a thermodynamic integration between two MLFFs, so is very quick. |
Step 4: TI from MLFF to GGA
Perform a thermodynamic integration from MLFF (λ=0) to RPBE+D3 (λ=1). This should be done separately for Fe3+ and Fe2+.
| Important: This step requires using GGAs on many structures so will be more time consuming. |
| Mind: Thermodynamic perturbation theory (TPT) from RPBE+D3 to PBE0, for both Fe3+ and Fe2+, is not covered here because of its cost. It can be replicated using Δ-learning from RPBE to PBE0, using the same procedure as from MLFF to RPBE. |
Step 5: Analysis
Once each step is completed, you will have the following values:
- the chemical potential - [math]\displaystyle{ e \Delta \bar{\phi} }[/math]
- the free energy difference from MLFF to MLFF (with chemical potential reference)
- from Fe3+ to Fe2+ - [math]\displaystyle{ \Delta A_{\mathrm{ML}} }[/math]
- the free energy difference from MLFF to GGA
- Reduced: Fe2+ - [math]\displaystyle{ \Delta A^{\mathrm{FP}_\mathrm{GGA}-\mathrm{ML}}_1 }[/math]
- Oxidized: Fe3+ - [math]\displaystyle{ \Delta A^{\mathrm{FP}_\mathrm{GGA}-\mathrm{ML}}_0 }[/math]
- [math]\displaystyle{ \Delta A^{\mathrm{FP}_\mathrm{GGA}} = \Delta A ^{\mathrm{ML}} + \Delta A^{\mathrm{FP}_\mathrm{GGA}-\mathrm{ML}}_1 - \Delta A^{\mathrm{FP}_\mathrm{GGA}-\mathrm{ML}}_0 }[/math]
The vacuum alignment is already contained in [math]\displaystyle{ \Delta A^{\mathrm{ML}} }[/math]. Combining the remaining terms as above gives the free energy difference from Fe3+ to Fe2+ on the GGA level [math]\displaystyle{ \Delta A^{\mathrm{FP}_\mathrm{GGA}} }[/math]. Switch the sign to get the absolute redox potential [math]\displaystyle{ U^{\mathrm{FP}_\mathrm{GGA}}_{\mathrm{redox}} }[/math]. Finally, take the standard hydrogen electrode (SHE) (4.44 V [2]) away to compare to experiment [math]\displaystyle{ U^{\mathrm{FP}_\mathrm{GGA}}_{\mathrm{redox,SHE}} }[/math]. The results below match the literature to within 30 meV.
The results are summarized in the following table:
| Step | Term | Ours (eV) | Lit. [1] (eV) |
| 2 - Vacuum reference | [math]\displaystyle{ e \Delta \bar{\phi} }[/math] | -3.71 | -3.74 |
| 3 - TI (MLFF) | [math]\displaystyle{ \Delta A_{\mathrm{ML}} }[/math] | -4.98 | -4.95 |
| 4 - TI (GGA) | [math]\displaystyle{ \Delta A^{\mathrm{FP}_\mathrm{GGA}-\mathrm{ML}}_1 - \Delta A^{\mathrm{FP}_\mathrm{GGA}-\mathrm{ML}}_0 }[/math] | -0.055 | -0.049 |
| Absolute redox potential | [math]\displaystyle{ U^{\mathrm{FP}_\mathrm{GGA}}_{\mathrm{redox}} }[/math] | 5.03 | 5.00 |
| Redox potential | [math]\displaystyle{ U^{\mathrm{FP}_\mathrm{GGA}}_{\mathrm{redox,SHE}} }[/math] | 0.59 | 0.56 |
Recommendations and advice
- The vacuum-reference step and the MLFF:GGA integrations are by far the most expensive parts of the workflow, since both evaluate a GGA on many structures. Training the MLFFs in the first place can also be time consuming. The MLFF:MLFF integration, by contrast, is very quick.
Related tags and articles
- How-tos
- Vacuum reference
- Thermodynamic integration between machine-learned force fields
- Thermodynamic integration between a machine-learned force field and a density functional
- Theory
- Tags
