Part 3: Substitution reaction of chloromethane by a chloride ion¶

Content¶

 8 Slow-growth simulation of the free-energy profile
 9 Probability distribution of the reactant state
 10 Average velocity at the transition state

8 Slow-growth simulation of the free-energy profile

$\uparrow$

¶

By the end of this tutorial, you will be able to:

• use thermodynamic integration to get a free-energy profile
• perform a slow-growth simulation and judge its quality
• interpret the content of the ICONST file
• extract some information from the REPORT file

8.1 Task¶

Compute the free energy as a function of reaction coordinate for the nucleophilic substitution of chloromethane by a chloride ion using the slow-growth approach and thermodynamic integration.

By computing the free-energy profile of a chemical reaction, you can obtain the activation free energy of a reaction. That is, the work needed to transition from a stable reactant state to the transition state. One way to get the free-energy profile is the so-called thermodynamic integration, where you integrate the free-energy gradients along the reaction path. That path connects the initial and final thermodynamic states occurring in the chemical reaction. The so-called reaction coordinate is a one-dimensional representation of the reaction path.

A slow-growth simulation using ab-initio molecular dynamics (MD) captures transformations, the system might undergo during the reaction, for instance activating soft degrees of freedom like rotations. Performing the transformation slowly aims to make the process reversible. That is, the work being done on the system equals free energy, as can be shown within thermodynamics.

In contrast, in a fast-switching simulation, the free energy is computed using pure statics by performing the transformation many, many times quickly. It yields a set of values for irreversible work that is being done on the system. This set of values can be converted into free energy via the Jarzinsky identity. Yet another approach is based on the analysis of the local topology of the potential-energy surface (PES) around stationary points. This static approach only requires relaxation and vibration analysis of few stationary points on the PES and is therefore computationally inexpensive. Nevertheless, this approach cannot account for soft modes that might be activated during the transition and, hence, it merely gives a qualitative estimate of the reaction path.

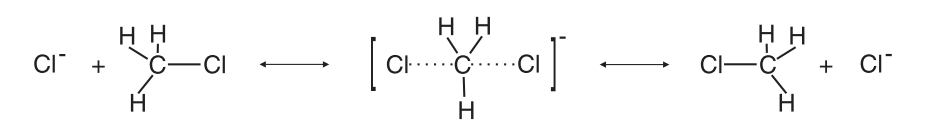

Above you can see the chemical reaction that you will simulate in this example. It is an S$_\mathrm{N}$2 reaction. In particular, chloromethane, i.e., CH$_3$Cl, and Cl$^-$ collide. Then, chloromethane, being a nucleophile, binds Cl$^-$ and forms a discrete, detectable intermediate state. Finally, the substitution reaction is completed, when the system releases the Cl$^-$ that was bound before. In this case the S$_\mathrm{N}$2 reaction is symmetric as a Cl$^-$ is bound and another Cl$^-$ is let go off, but in general another functional group, i.e., part of the molecule, could be released. Therefore the free-energy profile of this reaction is symmetric.

8.2 Input¶

The input files to run this example are prepared at $TUTORIALS/MD/e08_slow-growth-SN2.

POSCAR.init

CH3Cl and Cl anion
   1.00000000000000
    12.0000000000000000    0.0000000000000000    0.0000000000000000
     0.0000000000000000   12.0000000000000000    0.0000000000000000
     0.0000000000000000    0.0000000000000000   12.0000000000000000
     C    H    Cl
     1    3    2
Direct
  0.5514939507826783  0.6445322822677826  0.6618499542507703
  0.5955920236688621  0.6360489324678542  0.7468089748516230
  0.5000590382923739  0.5725532184521409  0.6443833645770085
  0.5061562091176164  0.7207841961851618  0.6499733084904860
  0.6457080633995789  0.6469765007123230  0.5426978869294665
  0.5382007268289341  0.4048714890598017  0.8450701690068790

INCAR.refit

SYSTEM   = CH3Cl and Cl anion
KSPACING = 1000                 ! Gamma point only

! machine learning
ML_LMLFF  = T       ! use machine-learned force fields
ML_MODE   = REFIT   ! read ML_AB and create ML_FFN

INCAR.init

SYSTEM   = CH3Cl and Cl anion
ISYM     = 0                    ! no symmetry imposed
POMASS   = 12.011 3.000 35.453  ! ionic masses
KSPACING = 1000                 ! Gamma point only

! MD
IBRION = 0        ! MD (treat ionic degrees of freedom)
NSW    = 1500     ! no of ionic steps
POTIM  = 2        ! MD time step in fs

MDALGO = 1             ! Andersen thermostat
ANDERSEN_PROB = 0.05   ! collision probability

TEBEG  = 300      ! temperature at beginning
ISIF   = 2        ! update positions; cell shape and volume fixed

LBLUEOUT = T      ! write free-energy gradient to REPORT file
INCREM   = 8e-4   ! transformation velocity (slow growth)

! machine learning
ML_LMLFF  = T     ! use machine-learned force fields
ML_MODE   = RUN   ! read ML_AB and ML_FF, no learning

POTCAR

 Pseudopotentials of C, H and Cl.

ICONST

R 1 5 0
R 1 6 0
S 1. -1.  0

ML_AB

 Collection of ab-initio data from previous calculations for CH3Cl and Cl anion: Lattice vectors, atomic positions, energies, forces, and stress tensors.

Check the tags set in the INCAR files! INCAR.refit contains two tags to controll the MLFF method. ML_LMLFF=T switches on its use and ML_MODE=refit allows generating a force field based on an existing ML_AB file.

The SYSTEM tag takes any string and serves just for your own reference. ISYM generally switches off the use of any symmetry and you always need to set it for MD calculations. The POMASS tag specifies the ionic mass and also gets set by the POTCAR file. To overwrite the values set by the POTCAR file, you can specify POMASS in the INCAR file in the same order. The reason to do this here, is to use the hydrogen isotope tritium in the simulation that is heavier than hydrogen. This causes the oscillation of hydrogen bonds to be slower and allows to use a larger time step defined using POTIM, and still capture the same physics. Does this change the reaction rate in an MD simulation using force fields? How about in an ab-initio MD simulation? In other words, will you see an isotope effect?

Another tag in the INCAR file is the KSPACING tag, that specifies the density of $\mathbf{k}$ points. We set it to a ridiculously large number, so that only the Γ point will be initialized. Alternatively, you could also setup a KPOINTS file that specifies a single $\mathbf{k}$ point.

IBRION, NSW and POTIM control how the ionic positions are updated. MDALGO, ANDERSEN_PROB, TEBEG and ISIF together define the thermodynamic ensemble. What ensemble does the setting correspond to? How does the Andersen thermostat include the temperature in the simulation?

The reaction coordinate is defined as a constraint specified in the ICONST file. Read about the ICONST file on the VASP Wiki and answer the following question! What reaction coordinate is chosen for this calculation?

Additional to the constraints specified in the ICONST file, the INCREM tag constrains the MD simulation to evolve along the reaction path. It specifies the transformation velocity in units per step, i.e., POTIM, not per time.

LBLUEOUT switches on the computation of the free energy gradients and writes to the REPORT file.

The POSCAR file defines the initial ionic positions and the POTCAR file contains details about the atomic species.

8.3 Calculation¶

Open a terminal, navigate to this example's directory and refit the ab-initio energies, forces and stress stored in the ML_AB file to generate a force field by entering the following:

cd $TUTORIALS/MD/e08_*
cp INCAR.refit INCAR
cp POSCAR.init POSCAR
mpirun -np 4 vasp_gam

Copy the generated force field from the output ML_FFN file to an input ML_FF file. Then, start the actual MD simulation by executing the following:

cp ML_FFN ML_FF
bash run.sh

It starts 3000 MD steps. This takes a moment, so let's learn about thermodynamic integration. Once you have evaluated the free-energy gradient $\frac{\partial A}{\partial \xi}$ at values of the reaction coordinates $\xi'$, you can compute the free energy difference $\Delta A_{\mathrm{A}\to\mathrm{B}}$ between any two states, A and B, by integrating along the reaction path: $$ \tag{1} \Delta A_{\mathrm{A}\to\mathrm{B}} = \int_{\xi_{\mathrm{A}}}^{\xi_\mathrm{B}} \left. \frac{\partial A}{\partial \xi} \right|_{\xi'} \mathrm{d} \xi' = \Delta A(\xi_\mathrm{B}) - \Delta A(\xi_{\mathrm{A}}). $$ The main difficulty is to get a sufficiently well sampled free-energy gradient $\frac{\partial A}{\partial \xi}$ at each $\xi'$. In the slow-growth approach, the reaction coordinate $\xi'$ is changed with each time step $\mathrm{d}\tau$, set by POTIM, with transformation velocity $\dot{\xi}'$, set by INCREM. The above integral is rewritten within the slow-growth approach using $$ \tag{2} \mathrm{d} \xi' = \dot{\xi}' \mathrm{d}\tau. $$ If the transformation velocity and time step are not sufficiently small, this approach fails. The quality of your simulation, can be checked by reversing the process. If the free-energy profile, that is the plot of $\Delta A(\xi)$, shows a hysteresis the transformation velocity and time step are not sufficiently small.

In practice, a slow-growth simulation is used only to get a quick look at the free-energy profile. To perform a high quality thermodynamic integration, other methods, such as the blue-moon method that is also implemented in VASP, are better since they allow for fine control of convergence, but they come at the expense of higher computational cost.

After the first 1500 MD steps are done, a directory called run1 appears in this example's directory. Open the run1/REPORT file!

For each MD step, the following information is written:

========================================
         MD step No.       1
========================================

  Atomic velocities initialized by STEP_tb

  >parameters for SHAKE algorithm
   SHAKEMAXITER =      1000
       SHAKETOL =   0.100000E-04
       SHAKESCA =    2.00000000

  SHAKE converged in   14 steps

  >Const_coord
   cc> S   -1.79976  -1.79977 -0.256768E-05

  >Blue_moon
        lambda        |z|^(-1/2)    GkT           |z|^(-1/2)*(lambda+GkT)
   b_m>  0.176383E+01  0.179942E+01  0.375764E-03  0.317455E+01

  >Energies
                    E_tot             E_pot             E_kin               EPS                ES
   e_b>   -0.27730066E+02   -0.27867234E+02    0.17427490E+00    0.00000000E+00
    0.00000000E+00

  >Metadynamics

  >Temperature
               T_sim     T_inst
   tmprt>    300.000    288.909

  >Thermostat, num. of collisions:                0

           RANDOM_SEED =         311137787               78                0

For the post-processing of a slow-growth simulation, you can find $\xi'$ as the first number in the line starting with cc>, and the free-energy gradient $\frac{\partial A}{\partial \xi}$ at $\xi'$ as the first number in the line starting with b_m>! This will allow you to perform the integration in Eq. (1).

You can now get a first look at the MD trajectories using py4vasp:

After additional 1250 MD steps are done, a directory called run2 appears in this example's directory and you have completed the calculation. You can extract the free-energy gradients using the provided script free-energy_gradient.sh by entering the following into the terminal:

cd $TUTORIALS/MD/e08_*
bash free-energy_gradient.sh

This creates a file called free-energy_gradient.dat by executing free-energy_gradient.sh

#!/bin/bash

rm -f free-energy_gradient.dat
touch free-energy_gradient.dat

for i in 1 2
do
  if test -f run$i/REPORT
  then
    grep cc run$i/REPORT  | awk '{print $3}' > xxx
    grep b_m run$i/REPORT | awk '{print $2}' > fff
    paste xxx fff >> free-energy_gradient.dat
  fi
done

sort -n free-energy_gradient.dat > free-energy_gradient_.dat
mv free-energy_gradient_.dat free-energy_gradient.dat
rm xxx fff

Perform the thermodynamic integration and plot the free energy as a function of reaction coordinate using the code below!

In the free-energy plot, that you have generated, where is the reactant state? And where is the product state? What value of the reaction coordinate corresponds to the transition state? Why is the free energy almost symmetric with respect to the reaction coordinate?

Find representative configurations for each state in the MD trajectory! What are the characteristic features for each state? Hint: You can get the distance between two atoms by right-clicking the first once, and the second twice.

8.4 Questions¶

1. Which file specifies the constraints for constrained molecular dynamics?
2. Along which path does INCREM act?
3. Are free-energy profiles always symmetric?
4. What is the slow growth simulation approach typically used for? When does it fail?

9 Probability distribution of the reactant state

$\uparrow$

¶

By the end of this tutorial, you will be able to:

• compute the probability density of the reaction coordinate
• monitor a geometric parameter

9.1 Task¶

Perform a free MD simulation in the reactant state of chloromethane and a chloride ion, and compute the probability density of the reaction coordinate.

If the reaction between chloromethane and a chloride ion is not activated, the transition does not occur spontaneously. This can be confirmed by computing the probability density of the reaction coordinate: $$\tag{1} P(\xi') = \left\langle \delta( \xi' - \xi(\mathbf{R})) \right\rangle_{\mathrm{R}}, \qquad \xi'<0 $$ starting within the ensemble of the reactant.

9.2 Input¶

The input files to run this example are prepared at $TUTORIALS/MD/e09_free-MD-SN2, except for the ML_FF file. Create a link to the force field generated in the previous exercise, instead of copying it, to save disc memory by entering the following into the terminal:

cd $TUTORIALS/MD/e09_*
ln -s $TUTORIALS/MD/e08_*/ML_FF .

POSCAR.init

CH3Cl and Cl anion
   1.00000000000000
    12.0000000000000000    0.0000000000000000    0.0000000000000000
     0.0000000000000000   12.0000000000000000    0.0000000000000000
     0.0000000000000000    0.0000000000000000   12.0000000000000000
   C    H    Cl
     1     3     2
Direct
  0.5514939507826783  0.6445322822677826  0.6618499542507703
  0.5955920236688621  0.6360489324678542  0.7468089748516230
  0.5000590382923739  0.5725532184521409  0.6443833645770085
  0.5061562091176164  0.7207841961851618  0.6499733084904860
  0.6457080633995789  0.6469765007123230  0.5426978869294665
  0.5382007268289341  0.4048714890598017  0.8450701690068790

INCAR.init

SYSTEM   = CH3Cl and Cl anion
ISYM     = 0                    ! no symmetry imposed
POMASS   = 12.011 3.000 35.453  ! ionic masses
KSPACING = 1000                 ! Gamma point only

! MD
IBRION = 0        ! MD (treat ionic degrees of freedom)
NSW    = 5000     ! no of ionic steps
POTIM  = 2        ! MD time step in fs

MDALGO = 1             ! Andersen thermostat
ANDERSEN_PROB = 0.05   ! collision probability

TEBEG  = 300      ! temperature at beginning
ISIF   = 2        ! update positions; cell shape and volume fixed

! machine learning
ML_LMLFF  = T  ! use machine learned force fields
ML_MODE   = run  ! read ML_AB and ML_FF, no learning

POTCAR

 Pseudopotentials of C, H and Cl.

ICONST

R 1 5 0
R 1 6 0
S 1. -1.  7

ML_FF

 Force field parameters.

Recall the meaning of the tags in the INCAR file! Compared to Example 8, LBLUEOUT and INCREM are not set. That is the free energy gradients are not written to the REPORT file and the MD calculation is not forced along the reaction path. Instead this is an unconstrained, or free, MD calculation with machine-learned force fields.

In the ICONST file the STATUS tag of the complex coordinate in the last line is 7. What does this imply? Find the answer on the VASP Wiki!

9.3 Calculation¶

Open a terminal, navigate to this example's directory and run VASP by entering the following:

cd $TUTORIALS/MD/e09_*
bash run.sh

This starts 10000 MD steps! As this will take some time, so let's learn about how to compute the reaction rate constant and the activation energy measured experimentally!

The reaction rate constant of a chemical reaction from reactant state R to product state P, that is measured in an experiment, is described by Eyring's Equation: $$ \tag{2} k_{\mathrm{R}\to \mathrm{P}} = \frac{k_{\mathrm{B}}T}{h} \exp\left( - \frac{\Delta A^\ddagger}{k_{\mathrm{B}}T} \right). $$ Here, $\Delta A^\ddagger$ is the phenomenological activation energy, which can experimentally be accessed via the rate constant vs. T measurements (Arrhenius plot), $h$ is the Planck constant, $T$ is the temperature and $k_{\mathrm{B}}$ is the Boltzmann constant. The rate constant can also be written down in terms of quantities available by MD simulations: $$\tag{3} k_{\mathrm{R}\to \mathrm{P}} = \frac{\langle|\dot{\xi}^*|\rangle}{2} P(\xi_{\mathrm{ref},\mathrm{R}}) \exp\left( - \frac{\Delta A_{\xi_{\mathrm{ref},\mathrm{R}\to \xi^*}}}{k_{\mathrm{B}}T} \right), $$ where $\Delta A_{\xi_{\mathrm{ref},\mathrm{R}\to \xi^*}}$ is the free-energy difference between a reference state in the R state at $\xi_{\mathrm{ref},\mathrm{R}}$ and the transition state at $\xi^*$. $\Delta A_{\xi_{\mathrm{ref},\mathrm{R}\to \xi^*}}$ can be directly obtained from the free-energy profile you have computed in Example 8!

The choice of the reference state is arbitrary as long as you are in the R state. The reaction rate in Eq (2), is independent of the choice of the reference state. That is, because it is also directly proportional to the probability to find the system in that reference state. Lastly, the reaction rate depends on the thermodynamical average of the absolute value of the generalized velocity at the transition state $\langle|\dot{\xi}^*|\rangle$, which you will compute in Example 10!

Using Eq. (2) and Eq. (3), you can find a relation between the phenomenological activation energy measured in experiment and the activation energy obtained from MD simulations: $$\tag{4} \Delta A^\ddagger = \Delta A_{\xi_{\mathrm{ref,R}} \to \xi} - k_{\mathrm{B}} T \ln \left( \frac{h}{k_{\mathrm{B}} T} \frac{\langle | \dot{\xi^*}(0)| \rangle}{2} P(\xi_{\mathrm{ref,R}}) \right). $$ It is a common mistake to forget about the second term on the right side of Eq. (4), when comparing experimental and theoretical results!

After the first 5000 MD steps are done, a directory called run1 appears in this example's directory. Check what is written to the REPORT file in this simulation! Could you extract the free-energy gradient?

You can visualize the MD trajectories using py4vasp!

After the calculation has completed, a second directory run2 appears in this example's directory. Change to this example's directory and grep the reaction coordinate from the REPORT files of both runs and write them to reaction_coordinate.dat!

Does the reaction occur spontaneously in this simulation? What if you continued the simulation? What is the value of $P(\xi')$ at $\xi'=-1.5$?

9.4 Questions¶

1. What does STATUS=7 in the ICONST file set?
2. What is an Arrhenius plot?

10 Average velocity at the transition state

$\uparrow$

¶

By the end of this tutorial, you will be able to:

• perform a convergence study over number of molecular dynamics steps
• compute the reaction rate and phenomenological activation energy
• run a constrained molecular dynamics simulation

10.1 Task¶

Compute the average generalized velocity at the transition state, where chloromethane binds a chloride ion, and compute the reaction rate and phenomenological activation energy.

Recall that the reaction rate constant can be written as $$\tag{1} k_{\mathrm{R}\to \mathrm{P}} = \frac{\langle|\dot{\xi}^*|\rangle}{2} P(\xi_{\mathrm{ref},\mathrm{R}}) \exp\left( - \frac{\Delta A_{\xi_{\mathrm{ref},\mathrm{R}\to \xi^*}}}{k_{\mathrm{B}}T} \right). $$ And consequently the relation between the phenomenological free energy of activation $\Delta A^\ddagger$ and the reversible work $\Delta A_{\xi_{\mathrm{ref,R}} \to \xi^*}$ is given by $$\tag{2} \Delta A^\ddagger = \Delta A_{\xi_{\mathrm{ref,R}} \to \xi^*} - k_{\mathrm{B}} T \ln \left( \frac{h}{k_{\mathrm{B}} T} \frac{\langle | \dot{\xi}^*| \rangle}{2} P(\xi_{\mathrm{ref,R}}) \right). $$ You have computed all but one quantity to obtain $k_{\mathrm{R}\to \mathrm{P}}$ and $\Delta A^\ddagger$ from your MD simulations in Example 8 and Example 9. The missing quantity is the thermodynamical average of the generalized velocity at the transition state, which is defined as $$\tag{3} \dot{\xi} = \sum_{i=1}^N \sum_{\mu={x,y,z}} \frac{\partial \xi}{\partial R_{i,\mu}} {\dot R}_{i,\mu}, $$ where $R_{i,\mu}$ are the Cartesian coordinates of atom $i$.

10.2 Input¶

The input files to run this example are prepared at $TUTORIALS/MD/e10_reaction-rate-SN2, except for the ML_FF file. The machine learning file is quite big, so you can get it linked by typing the following into the terminal:

cd $TUTORIALS/MD/e10_*
ln -s $TUTORIALS/MD/e08_*/ML_FF .

POSCAR.init

transition state
1.0
12.00000000 0.00000000 0.00000000
0.00000000 12.00000000 0.00000000
0.00000000 0.00000000 12.00000000
C H Cl
1 3 2
direct
0.58713224 0.55301018 0.67971407
0.62447013 0.62816585 0.66438574
0.61071465 0.47956073 0.64324619
0.51527572 0.55388286 0.73866022
0.44165343 0.58799096 0.55554878
0.71833270 0.52000018 0.81936197

INCAR.init

SYSTEM   = CH3Cl and Cl anion
ISYM     = 0                    ! no symmetry imposed
POMASS   = 12.011 3.000 35.453  ! ionic masses
KSPACING = 1000                 ! Gamma point only

! MD
IBRION = 0        ! MD (treat ionic degrees of freedom)
NSW    = 600      ! no of ionic steps
POTIM  = 2        ! MD time step in fs

MDALGO = 1             ! Andersen thermostat
ANDERSEN_PROB = 0.05   ! collision probability

TEBEG  = 300      ! temperature at beginning
ISIF   = 2        ! update positions; cell shape and volume fixed

LBLUEOUT = T      ! write free-energy gradient to REPORT file

! machine learning
ML_LMLFF  = T    ! use machine-learned force fields
ML_MODE   = RUN  ! read ML_AB and ML_FF, no learning

POTCAR

 Pseudopotentials of C, H and Cl.

ICONST

R 1 5 0
R 1 6 0
S 1. -1.  0

ML_FF

 Force field parameters.

The POSCAR file defines a structure that is exactly on the transition state.

The INCAR tags are the same as in Example 9, but INCREM is not set. Combined with the settings of the ICONST file, this is a constrained MD simulation at the transition state.

What is the reaction coordinate? What does POMASS do? What ensemble is defined? Why? Are Kohn-Sham orbitals computed during the simulation?

10.3 Calculation¶

Open a terminal, navigate to this example's directory and run VASP by entering the following:

cd $TUTORIALS/MD/e10_*
bash run.sh

This will run 6000 MD steps. Meanwhile, revisit the data of your calculation in Example 8. Extract the value of $\Delta A_{\xi_{\mathrm{ref,R}} \to \xi^*}$! For instance, you might choose $\xi_{\mathrm{ref,R}}=-1.5$Å and use the following code to do that.

Also revisit Example 9 and get $P(\xi_{\mathrm{ref,R}})$!

Within the SHAKE algorithm, the generalized velocity is computed as follows: From the inverse mass metric tensor $$\tag{4} Z = \sum_{i=1}^N \frac{1}{m_i} \sum_{\mu=x,y,z} \left( \frac{\partial \xi}{\partial R_{i,\mu}}\right)^2 $$ the generalized velocity reads: $$\tag{5} \langle | \dot{\xi}^*| \rangle = \sqrt{ \frac{ 2k_{ \mathrm{B} } T }{ \pi } } \frac{1}{ \langle Z^{-1/2} \rangle_{\xi^*} }. $$ This is done by executing the following script:

cd $TUTORIALS/MD/e10_*
bash velocity.sh 300 > velocity.dat

Plot the computed generalized velocity over number of MD steps, in order to judge the convergence of your result!

For the purpose of this tutorial, the convergence is good enough. In your own calculations, you might want to closely monitor the convergence of all computed quantities with respect to the number of MD steps, the size of the MD step in fs and other parameters that can affect the quality of your result! For instance, you can use the Mann-Kendall trend test to ensure your data does not have a trend, i.e., the average does not drift in time.

These values can be compared to values obtained by ab-initio MD simulations for this system found in literature. The experimental value of the activation energy is predicted to be 0.4182 eV by ab-initio MD using the Blue moon method. Note that small deviations in $\Delta A^\ddagger$ have a large effect on $k_{\mathrm{R}\to \mathrm{P}}$, so this is not usually compared.

10.4 Questions¶

1. How can the generalized velocity be extracted from VASP output?
2. How many molecular dynamics steps are necessary to get a good ensemble average?
3. What steps are necessary to estimate the experimental activation energy using a molecular dynamics simulation?

Impressive! You have finished Part 3!¶

Go to Top $\uparrow$
